Fog Lamp Bulb: Notes

WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

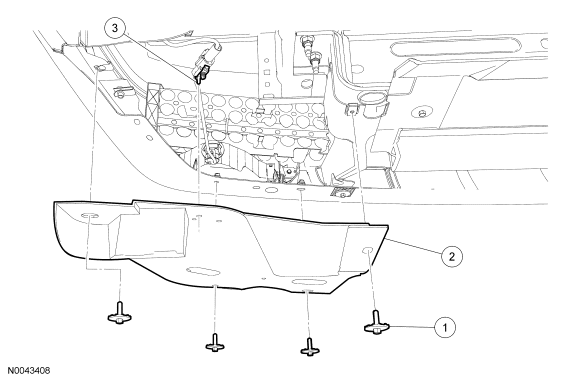

Fig 1: Exploded View Of Fog Lamp - Crown Victoria

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N808841-S	Lower radiator air deflector screws (4 required)
2	8327	Lower radiator air deflector
3	-	Electrical connector locator pin (part of 15A211)

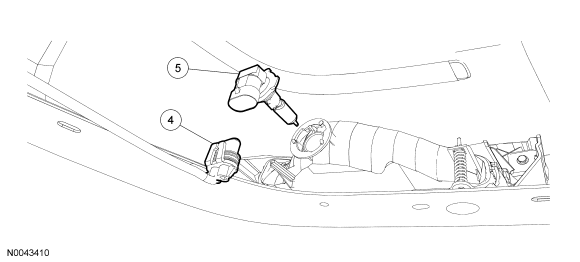

Fig 2: Exploded View Of Fog Lamp Bulb - Grand Marquis

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
4	-	Fog lamp electrical connector (part of 15A211)
5	13N021	Fog lamp bulb
