Crankcase Ventilation Tube: Notes

WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Exploded View Of Crankcase Ventilation Tube - LH Crankcase Ventilation Tube

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	LH crankcase ventilation tube-to-air cleaner outlet pipe quick connect coupling (part of 9G499)
2	-	LH crankcase ventilation tube-to-valve cover fitting quick connect coupling (part of 9G499)
3	9G499	LH crankcase ventilation tube

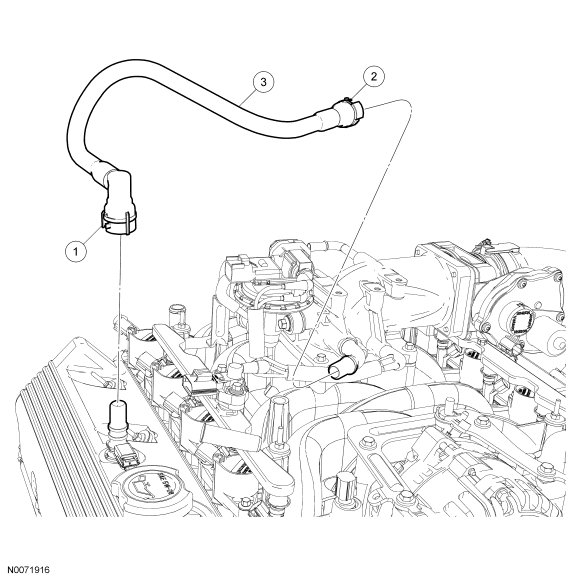

Fig 2: Exploded View Of Crankcase Ventilation Tube - RH Crankcase Ventilation Tube

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	RH crankcase ventilation tube-to-PCV valve quick connect coupling (part of 9E499A)
2	-	RH crankcase ventilation tube-to-throttle body (TB) spacer quick connect coupling (part of 9E499A)
3	9E499	RH crankcase ventilation tube
