Major Components
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
This transaxle has the following major components:
- Case with torque converter housing
- Two drive clutches:
- Direct clutch
- Overdrive (O/D) clutch
- Four brake clutches:
- Forward clutch
- Low one-way clutch
- Low/reverse clutch
- Intermediate clutch
- Three planetary gearsets:
- Front
- Center
- Rear
- Drive chain and sprockets
- Final drive planetary gearset and differential assembly
- Pump and filter assembly
- Main control:
- Valve body assembly
- Solenoid body assembly

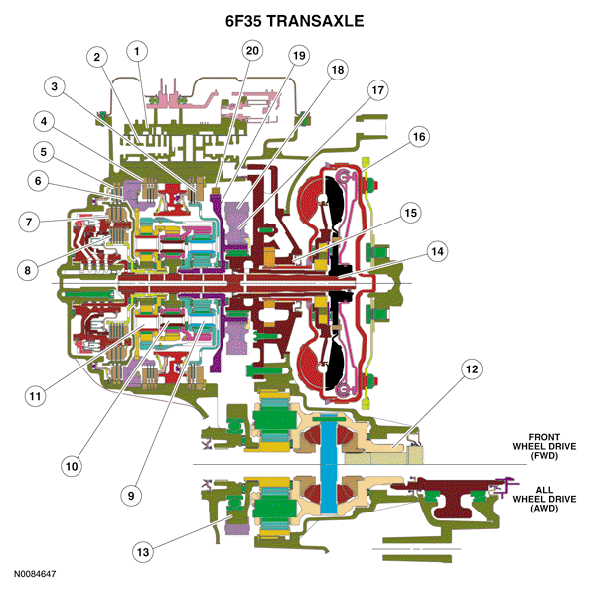

Major Component Cutaway View

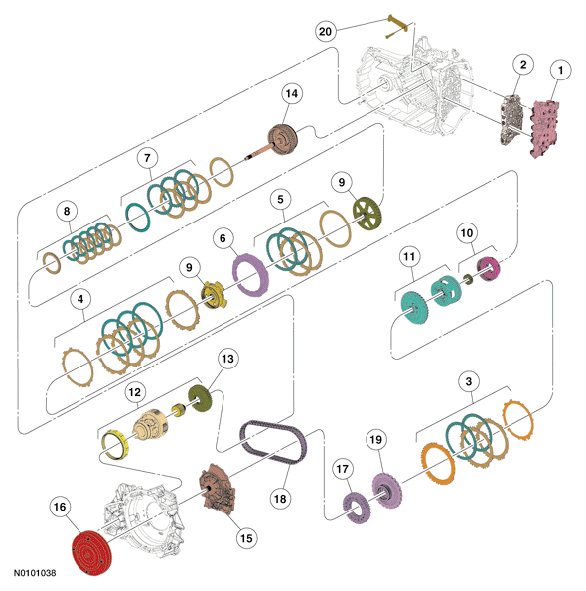

Major Component Exploded View
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 7G391 | Solenoid body |
| 2 | 7A100 | Valve body |
| 3 | 7B164 | Forward clutch (clutch brake 1, 2, 3, 4) |
| 4 | 7B164 | Low/reverse clutch (clutch brake low/reverse) |
| 5 | 7B164 | Intermediate clutch (clutch brake 2, 6) |
| 6 | 7A089 | Low One-Way Clutch (OWC) |
| 7 | 7B164 | Direct clutch (drive clutch 3, 5, R) |
| 8 | 7B164 | Overdrive (O/D) clutch (drive clutch 4, 5, 6) |
| 9 | 7D491 | Rear planetary assembly |
| 10 | 7D491 | Center planetary assembly |
| 11 | 7D491 | Front planetary assembly |
| 12 | 7F465 | Final drive carrier and differential assembly |
| 13 | 7G132 | Drive chain driven sprocket |
| 14 | 7G384 | Input shaft assembly and direct/overdrive clutch hub |
| 15 | 7A103 | Pump assembly |
| 16 | 7975 | Torque converter |
| 17 | 7G132 | Drive chain drive sprocket |
| 18 | 7G249 | Drive chain |
| 19 | 7060 | Park gear |
| 20 | 7A441 | Park pawl |
