Accessory Protocol Interface Module (APIM): Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

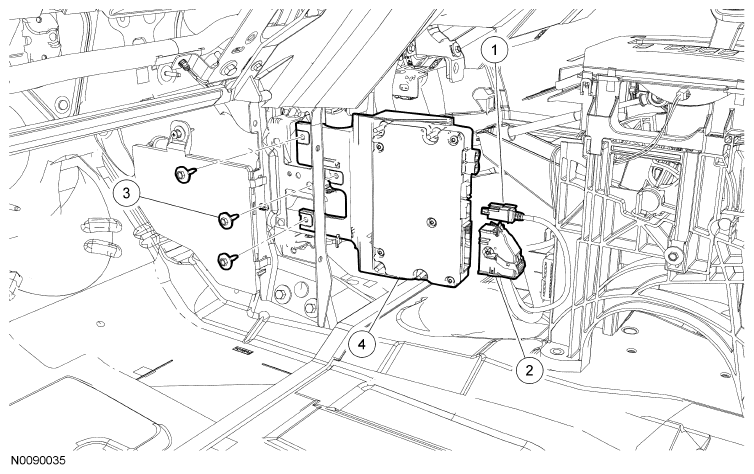

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
- |
Universal Serial Bus (USB) cable electrical connector (part of 14D202) |
| 2 |
- |
Accessory Protocol Interface Module (APIM) electrical connector (part of 18B107) |
| 3 |
W705796-S |
APIM
screws (3 required) |
| 4 |
14D212 |
APIM |
