Data Link Connector - C251

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

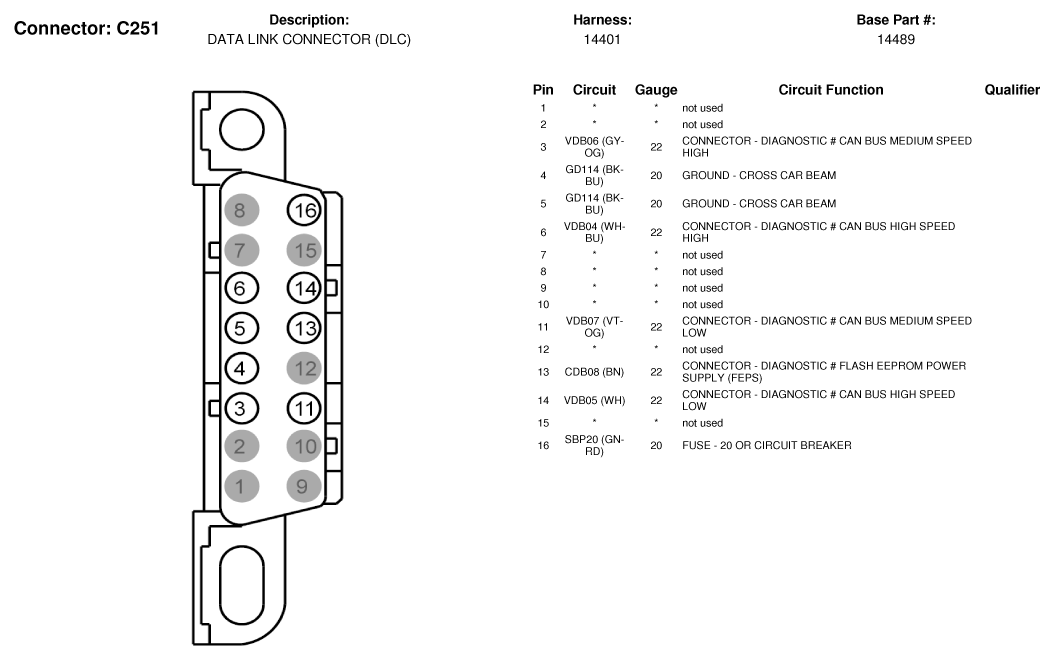

Fig 1: Data Link Connector End View (C251)

Courtesy of FORD MOTOR CO.
