Section 1733 (OEM Connector End Views)
›
Connector Views
›
Occupant Classification Sensor 2 Connector - C3325
Occupant Classification Sensor 2 Connector - C3325
WARNING:
This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

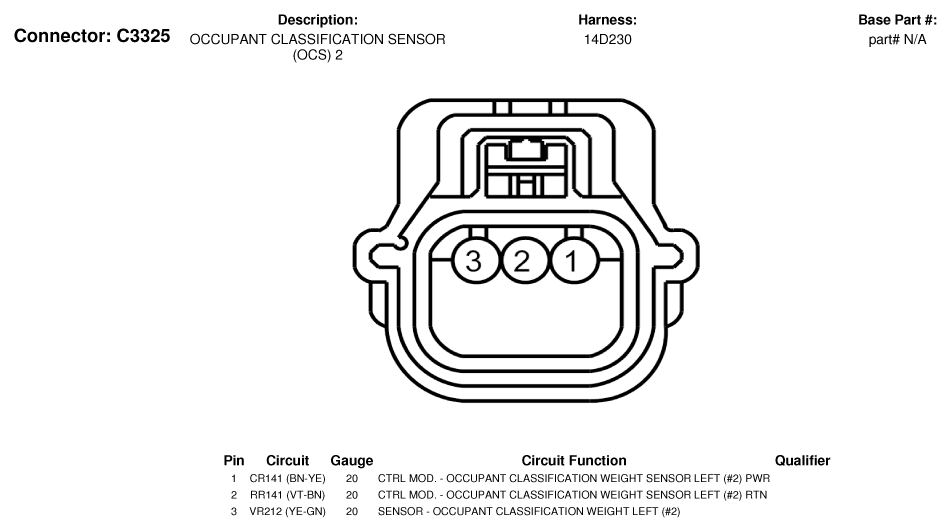

Fig 1: Occupant Classification Sensor 2 Connector End View (C3325)
Courtesy of FORD MOTOR CO.
