Occupant Classification Sensor 3 Connector - C3330

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

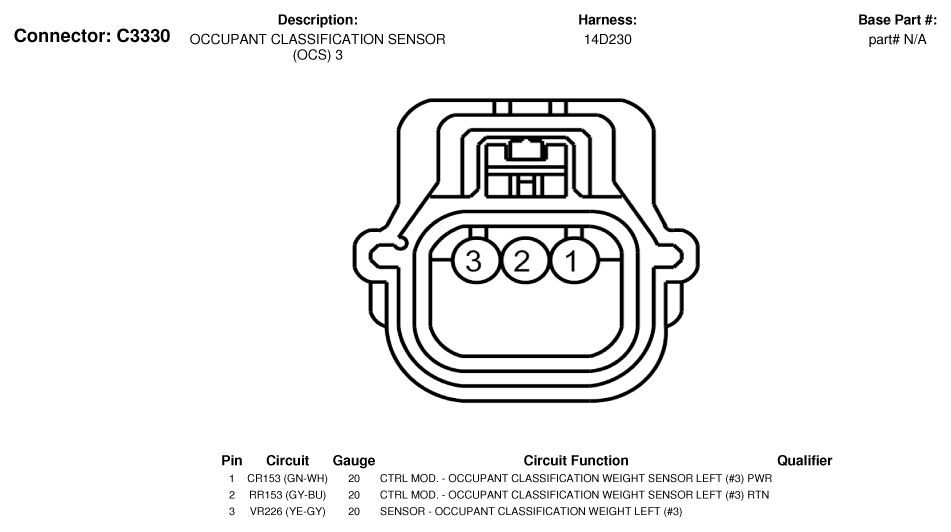

Fig 1: Occupant Classification Sensor 3 Connector End View (C3330)
G07336352Courtesy of FORD MOTOR CO.
