Passenger Climate Controlled Seat Module-2 Connector End View - C3365B

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

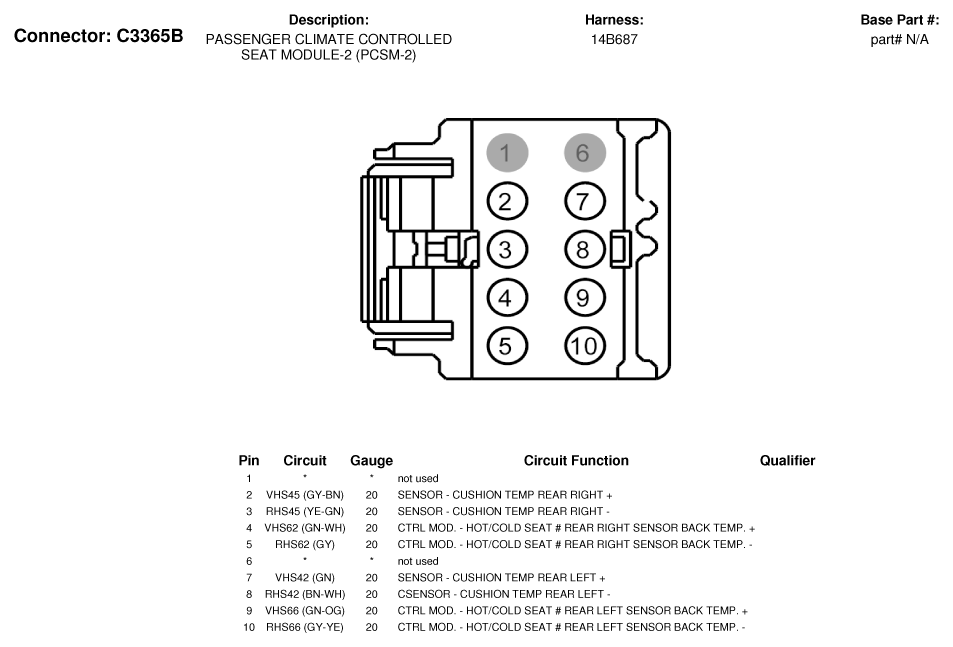

Fig 1: Passenger Climate Controlled Seat Module-2 Connector End View (C3365B)
G07336369Courtesy of FORD MOTOR CO.
