Passenger Climate Controlled Seat Module-2 Connector End View - C3365C

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

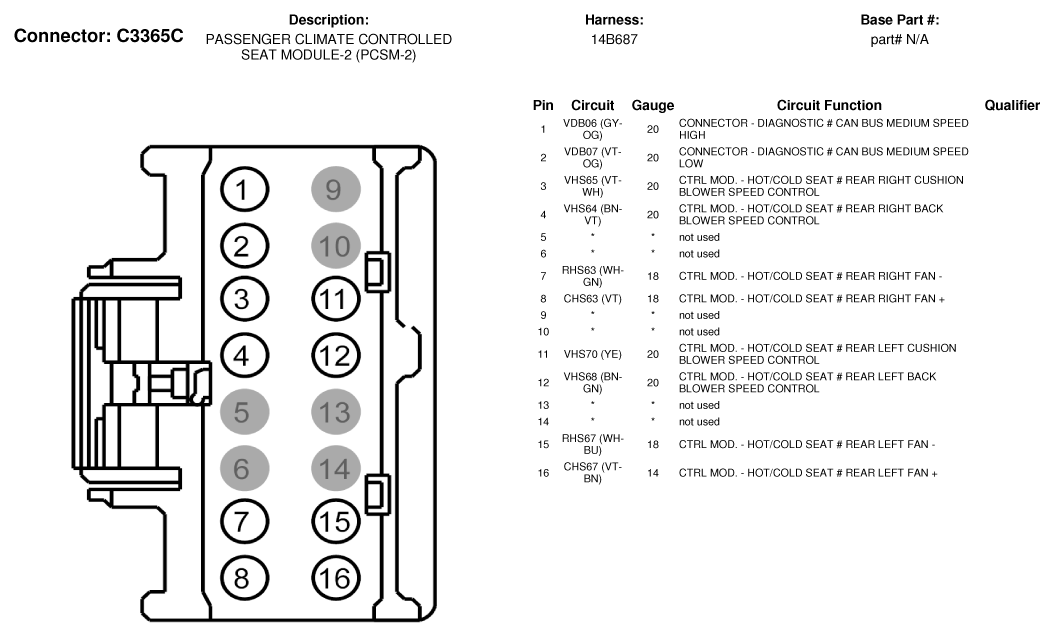

Fig 1: Passenger Climate Controlled Seat Module-2 Connector End View (C3365C)
G07336370Courtesy of FORD MOTOR CO.
