Side Air Bag Module: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

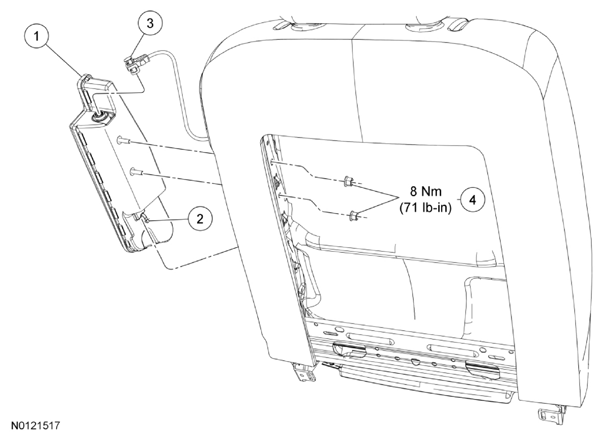

Drivers seat shown in the illustration, passenger seat similar.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 611D10 | Side air bag module |
| 2 | - | Side air bag module locator hook (part of 611D10) |
| 3 | - | Side air bag module electrical connector (part of 14K155) |
| 4 | N620480 | Side air bag module nuts (2 required) |
