Transaxle Filler Tube: Notes

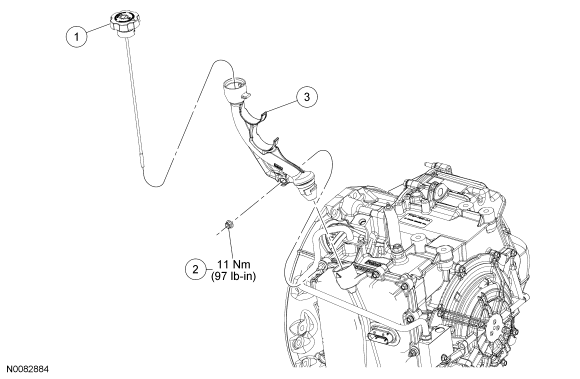

Fig 1: Transaxle Filler Tube With Torque Specifications
GF0043912Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7A020 Transmission fluid level indicator
2 W520101 Transmission fluid filler tube nut
3 7A228 Transmission fluid filler tube
