Audio Control Module Connector
›
Audio Control Module Connector End View - C240A
Audio Control Module Connector End View - C240A

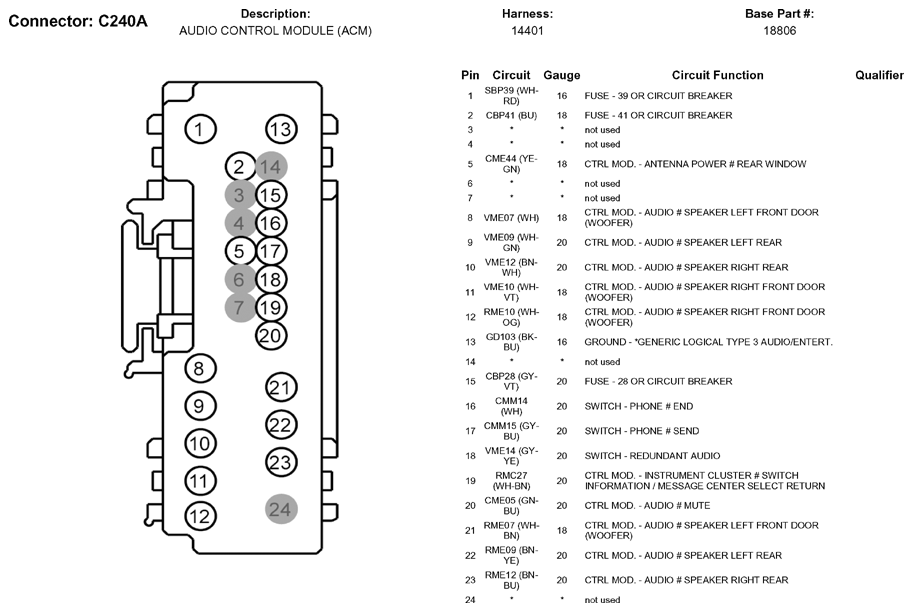

Fig 1: Audio Control Module Connector End View (C240A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
