Audio Control Module Connector
›
Audio Control Module Connector End View - C240C
Audio Control Module Connector End View - C240C

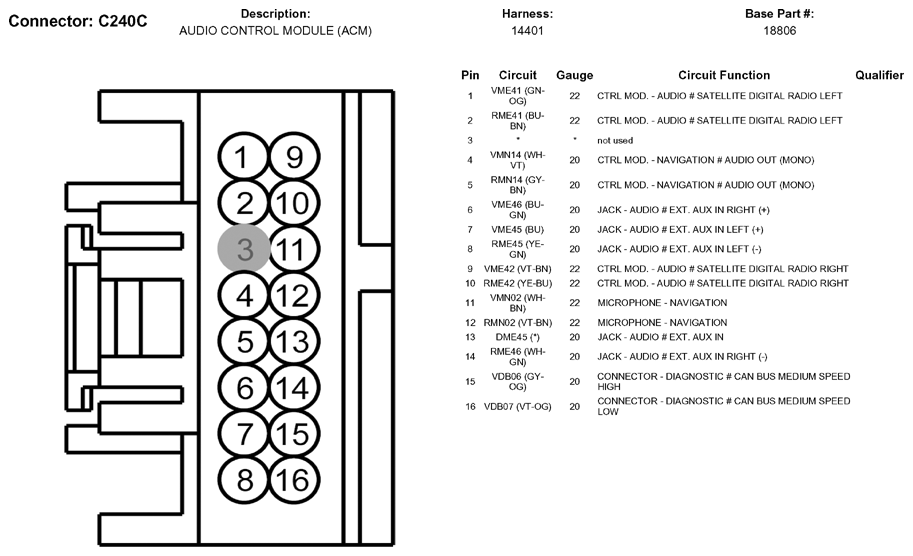

Fig 1: Audio Control Module Connector End View (C240C)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
