Driver Side Front Seat Control Switch Connector
›
Driver Side Front Seat Control Switch Connector End View - C369
Driver Side Front Seat Control Switch Connector End View - C369

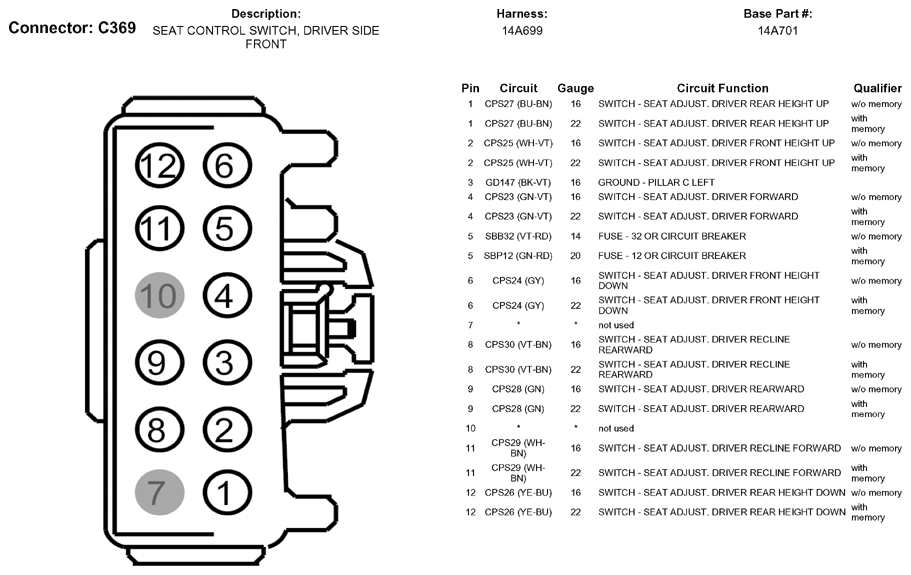

Fig 1: Driver Side Front Seat Control Switch Connector End View (C369)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
