Electronic Throttle Control Connector - C1368
Electronic Throttle Control Connector - C1368

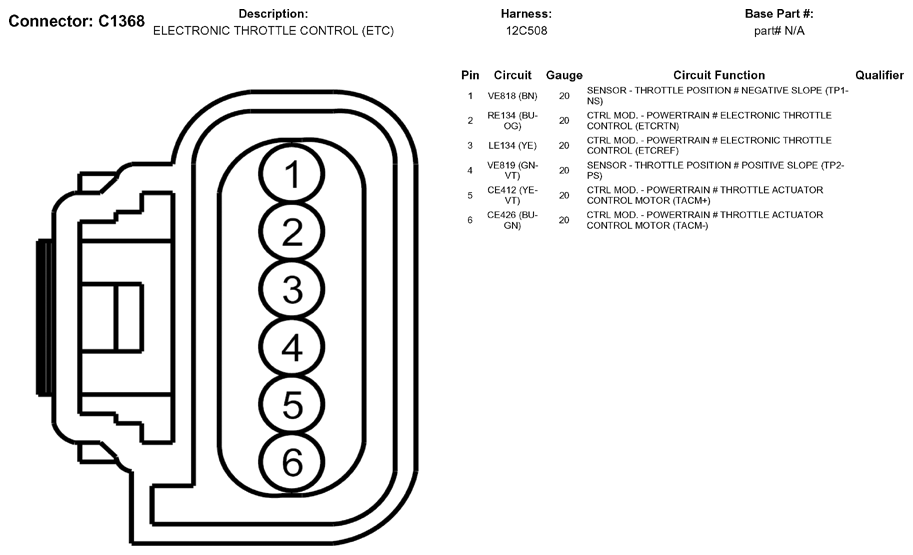

Fig 1: Electronic Throttle Control Connector End View (C1368)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
