Overhead Console Connector End View - C9013

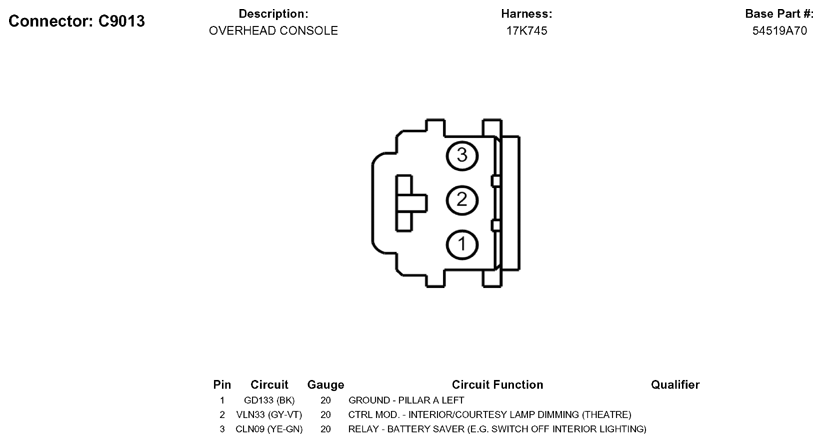

Fig 1: Overhead Console Connector End View (C9013)
G05790213Courtesy of FORD MOTOR CO.
