Strut and Spring Assembly: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

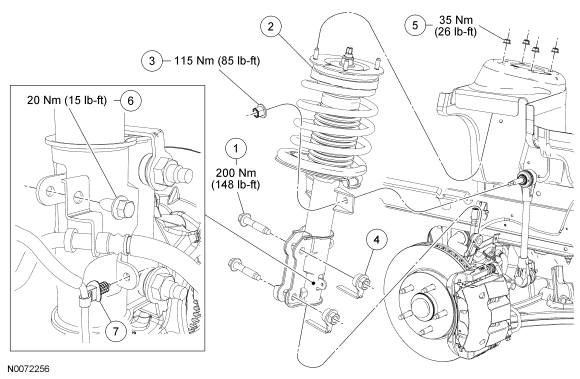

| Item | Part Number | Description |
|---|---|---|
| 1 | W709870 | Strut-to-wheel spindle bolt (2 required) |
| 2 | - | Strut and spring assembly |
| 3 | W712836 | Stabilizer bar link upper nut |
| 4 | W711091 | Strut-to-wheel spindle flag nut (2 required) |
| 5 | W520112 | Strut upper mount nut (4 required) |
| 6 | N802191 | Brake hose bracket bolt |
| 7 | - | Wheel speed sensor harness retainer (part of 2C204) |
