Section 1713 (Instrument Panel And Console)
›
Removal And Installation
›
Glove Compartment
›
Notes
Glove Compartment: Notes
WARNING:
This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

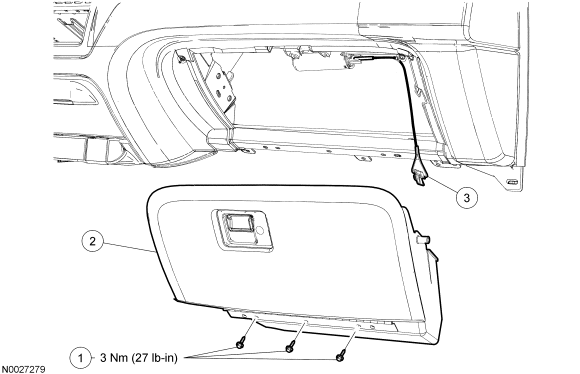

Fig 1: Removing/Installing Glove Compartment With Torque Specifications
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
385754
Glove compartment hinge bolts (3 required)
2
54060T10
Glove compartment door
3
06102
Glove compartment assist cable
