Axle Assembly: Notes
WARNING: This page is about a different variant/trim than selected.

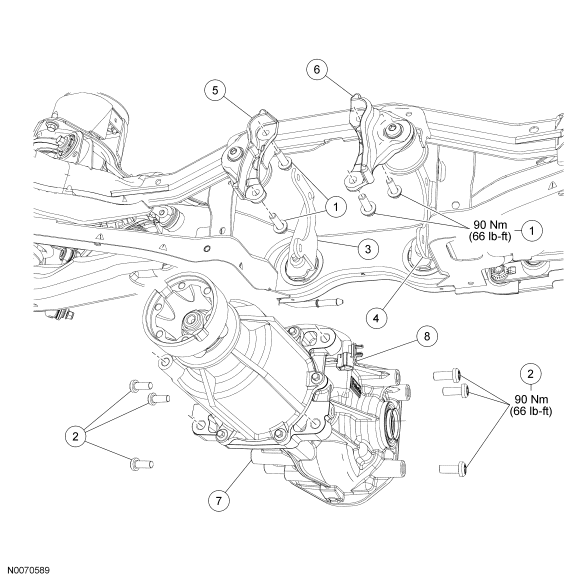

| Item | Part Number | Description |
|---|---|---|
| 1 | W713482 | Differential housing-to-front insulator bracket bolts (4 required) |
| 2 | W709862 | Side insulator bracket-to-rear axle differential bolts (6 required) |
| 3 | 4K204 | Right rear insulator bracket |
| 4 | 4K204 | Left rear insulator bracket |
| 5 | 4K360 | Right front insulator bracket |
| 6 | 4k630 | Left rear insulator bracket |
| 7 | 4000 | Rear axle assembly |
| 8 | - | Active torque coupling connector (part of 4000) |
