DATC HVAC Module Connector End View - C228A

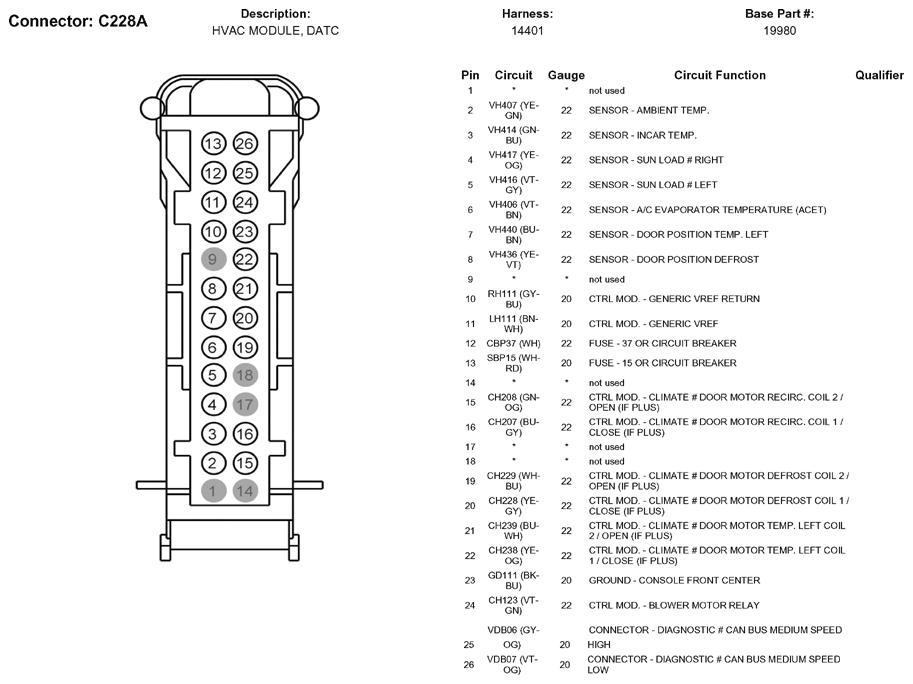

Fig 1: DATC HVAC Module Connector End View (C228A)
G05789958Courtesy of FORD MOTOR CO.
