DATC HVAC Module Connector End View - C228B

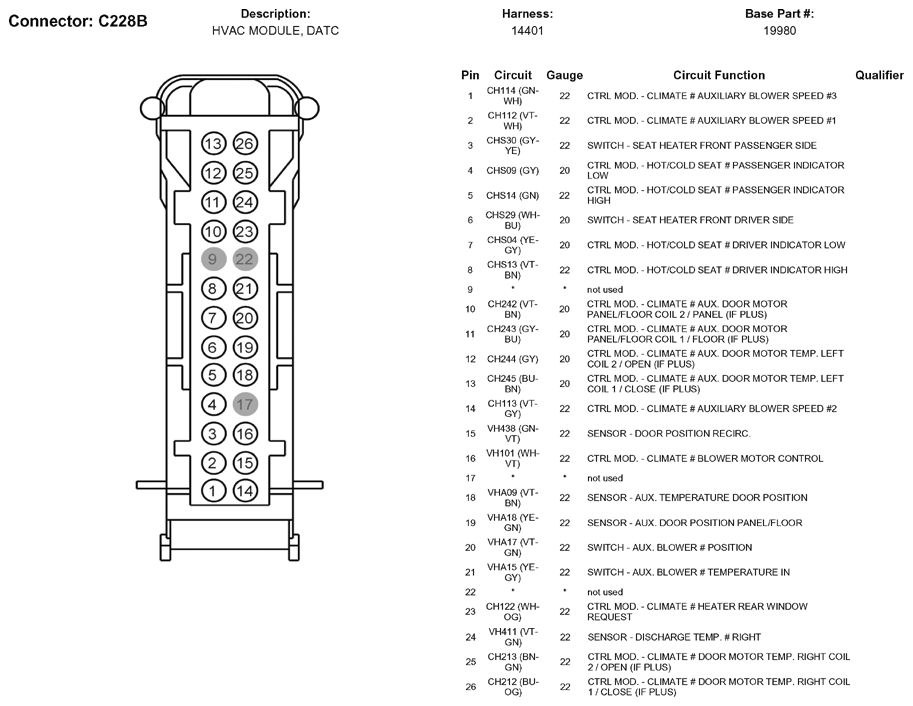

Fig 1: DATC HVAC Module Connector End View (C228B)
G05789959Courtesy of FORD MOTOR CO.
