Reverse Position: Notes

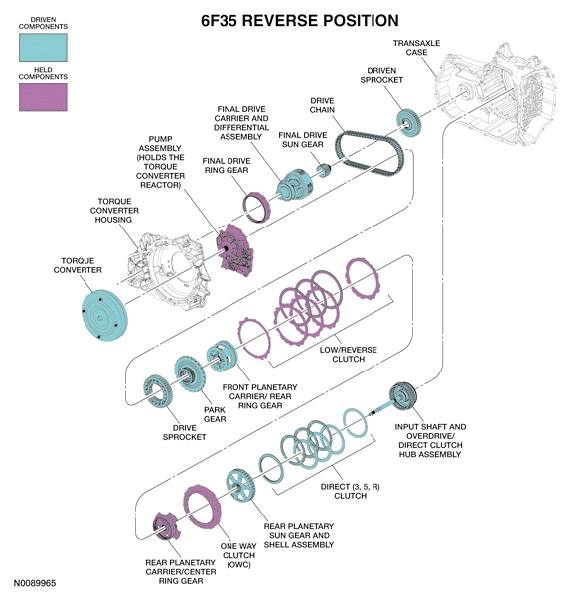

Fig 1: Identifying Reverse Position Components
G06278207Courtesy of FORD MOTOR CO.
