Clutch Support Tower: Assembly

  1. Install the Input Shaft Support Seal Installer 307-578/3 on the clutch support tower and adjust the Input Shaft Support Seal Installer to align the bottom edge of the tool with the top edge of the bottom Teflon® seal groove.
    Fig 1: Installing Input Shaft Support Seal Installer 307-578/3 On Clutch Support Tower
    G06278800Courtesy of FORD MOTOR CO.
  2. Install a new Teflon® seal on the Input Shaft Support Seal Installer 307-578/3.
    Fig 2: Installing Teflon® Seal On Input Shaft Support Seal Installer 307-578/3
    G06278801Courtesy of FORD MOTOR CO.
  3. Install the Input Shaft Support Seal Installer 307-578/2 over 307-578/3. Using the Input Shaft Support Seal Installer 307-578/2, slide the Teflon® seal over the clutch support tower and into the groove.

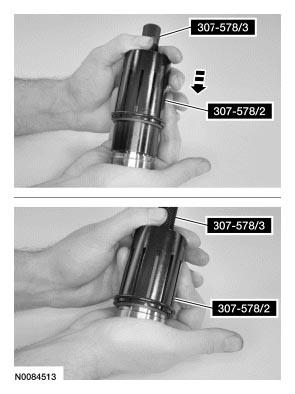

    Fig 3: Installing Input Shaft Support Seal Installer 307-578/2 Over 307-578/3
    G06278802Courtesy of FORD MOTOR CO.
  4. Remove the Input Shaft Support Seal Installer 307-578/2 and 307-578/3.
    • Repeat Steps  1 through 4 for the other 3 Teflon® seals.
    Fig 4: Identifying Teflon® Seals
    G06278803Courtesy of FORD MOTOR CO.
  5. Install the Input Shaft Support Seal Installer 307-578/1 on the clutch support tower to size the 4 Teflon® seals.
Fig 5: Identifying Input Shaft Support Seal Installer 307-578/1
G06278804Courtesy of FORD MOTOR CO.
