Main Control Valve Body: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the Air Cleaner (ACL) assembly. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING - 2.5L or INTAKE AIR DISTRIBUTION & FILTERING - 3.0L (4V) .
  3. Remove the screws and the underbody cover.
    Fig 1: Locating Screws And Underbody Cover
    G06278441Courtesy of FORD MOTOR CO.
  4. Remove the transmission fluid drain plug and allow the transmission fluid to drain.
    Fig 2: Locating Transmission Fluid Drain Plug
    G06278442Courtesy of FORD MOTOR CO.
  5. Install the transmission fluid drain plug.
    • Tighten to 12 Nm (106 lb-in).
    Fig 3: Locating Transmission Fluid Drain Plug
    G06278443Courtesy of FORD MOTOR CO.
  6. Disconnect the transaxle electrical connector.
    Fig 4: Locating Transaxle Electrical Connector
    G06278444Courtesy of FORD MOTOR CO.
  7. Connect the transaxle electrical wiring harness retainers to the main control cover stud bolts.

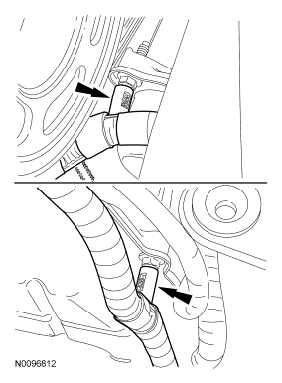

    Fig 5: Locating Transaxle Electrical Wiring Harness Retainers
    G06278445Courtesy of FORD MOTOR CO.
  8. Remove the 2 nuts, pull the transmission fluid cooler tube bracket and tubes away from the transaxle and position it aside.
    Fig 6: Locating Nuts
    G06278446Courtesy of FORD MOTOR CO.
  9. NOTE: Note the location of the stud bolts for assembly.

    Remove the 8 bolts, 5 stud bolts and the main control cover.

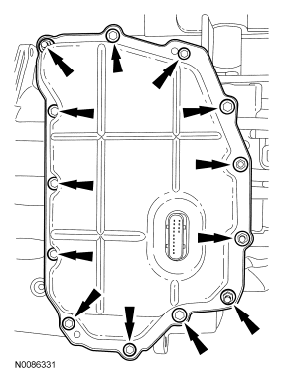

    Fig 7: Locating Bolts, Stud Bolts And Main Control Cover
    G06278447Courtesy of FORD MOTOR CO.
  10. Disconnect the Transmission Range (TR) sensor electrical connector.
    Fig 8: Locating TR Sensor Electrical Connector
    G06278448Courtesy of FORD MOTOR CO.
  11. Disconnect the Output Shaft Speed (OSS) sensor electrical connector.
    Fig 9: Locating Output Shaft Speed (OSS) Sensor Electrical Connector
    G06278449Courtesy of FORD MOTOR CO.
  12. Remove the main control-to-main control cover grommet.
    Fig 10: Locating Main Control Cover Grommet
    G06278450Courtesy of FORD MOTOR CO.
  13. NOTE: The main control should be handled with care or damage to the main control may occur.
    NOTE: Note the location of the different length bolts for assembly.

    Remove the nut, 22 bolts and the main control.

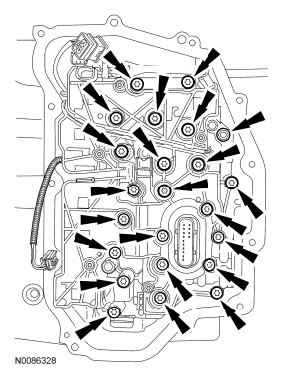

    Fig 11: Locating Bolts And Main Control
    G06278451Courtesy of FORD MOTOR CO.
  14. Remove the main control-to-transaxle case separator plate.

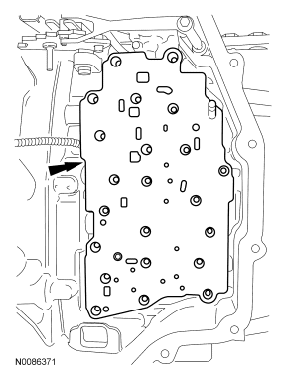

    Fig 12: Locating Main Control-To-Transaxle Case Separator Plate
    G06278452Courtesy of FORD MOTOR CO.
  15. Remove the 2 bolts and separate the solenoid body assembly from the main control valve body.
Fig 13: Locating Bolts And Solenoid Body Assembly
G06278453Courtesy of FORD MOTOR CO.
