Transaxle Filler Tube: Notes

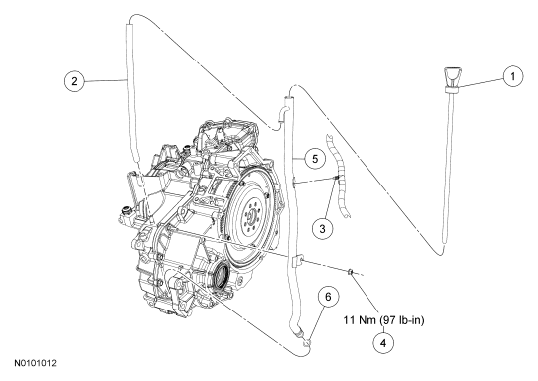

Fig 1: Transaxle Filler Tube Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	7A020	Transmission fluid level indicator
2	-	Transaxle vent tube (part of 7A228)
3	13A506	Wiring harness retainer
4	N805320	Transaxle filler tube nut
5	7A228	Transaxle filler tube
6	-	Transaxle filler tube O-ring
