Powertrain Control Module (PCM): Pcm

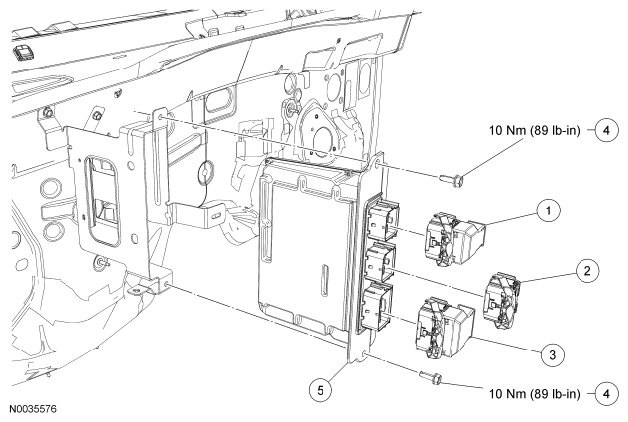

Fig 1: Powertrain Control Module With Torque Specifications

Courtesy of FORD MOTOR CO.

PART NUMBER REFERENCE

Item	Part Number	Description
1	14A464	PCM electrical connector (part of 12B637)
2	14A464	PCM electrical connector (part of 14398)
3	14A464	PCM electrical connector (part of 12B637)
4	N806972	PCM bolts (2 required)
5	12A651	PCM
