Accelerator Pedal - Fixed: Notes

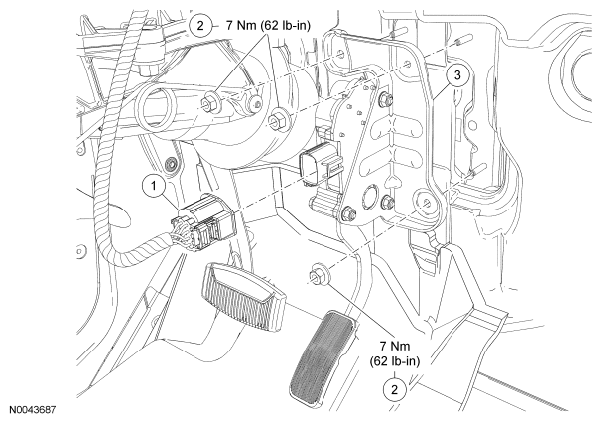

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	Accelerator pedal electrical connector (part of 14401)
2	90907	Accelerator pedal assembly nuts (3 required)
3	9F836	Accelerator pedal assembly
