Removal And Installation: Generator: Notes

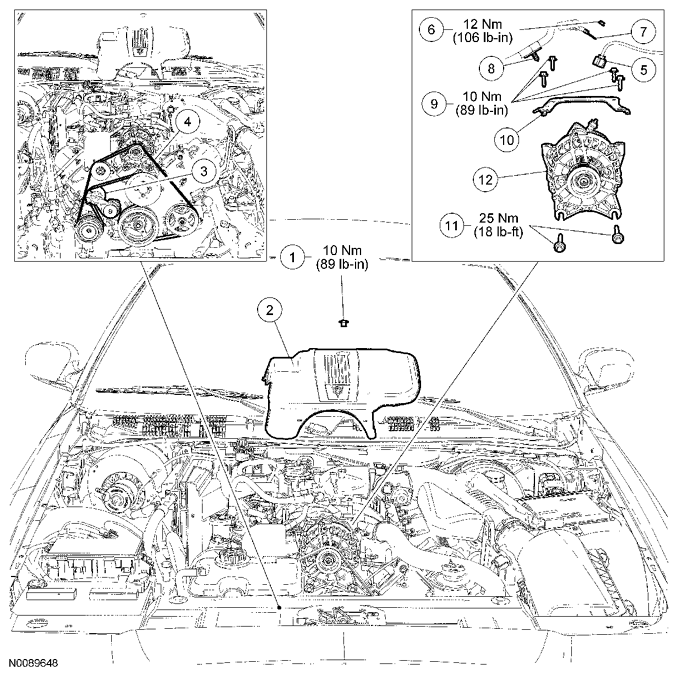

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | N808455 | Engine cover nut |
| 2 | 6A946 | Engine cover |
| 3 | 6B209 | Accessory drive belt tensioner |
| 4 | 8620 | Accessory drive belt |
| 5 | - | Generator electrical connector (part of 12B637) |
| 6 | W711953 | Generator B+ terminal nut (police and Long Wheel Base (LWB) taxi) |
| 7 | - | Generator B+ terminal (part of 14B060) |
| 8 | - | Generator harness locator (part of 14B060) |
| 9 | N606676 | Generator bracket bolts (4 required) |
| 10 | 10153 | Generator bracket |
| 11 | N806200 | Generator bolts (2 required) |
| 12 | 10346 | Generator |
