Powertrain Control Module (PCM)

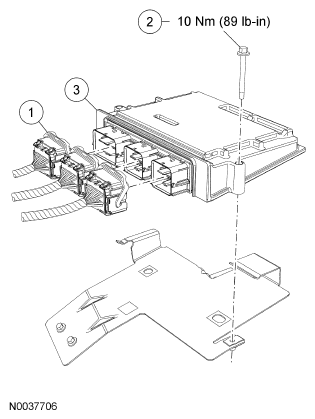

Fig 1: Identifying Powertrain Control Module (PCM) Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	14A464	PCM electrical connector (3 required)
2	W506503	PCM retaining bolt
3	12A651	PCM
