EGR System Module Tube

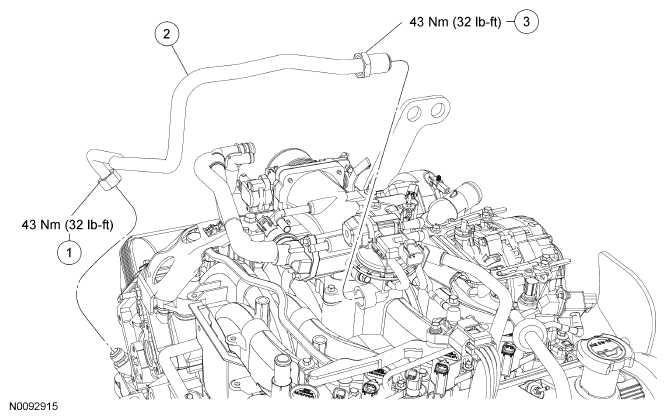

Fig 1: Exploded View Of EGR System Module Tube Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	EGR system module tube-to-exhaust manifold fitting (part of 9D477)
2	9D477	EGR system module tube
3	-	EGR system module tube-to-EGR system module fitting (part of 9D477)

For additional information, refer to the appropriate procedures in this service information.
