EGR System Module

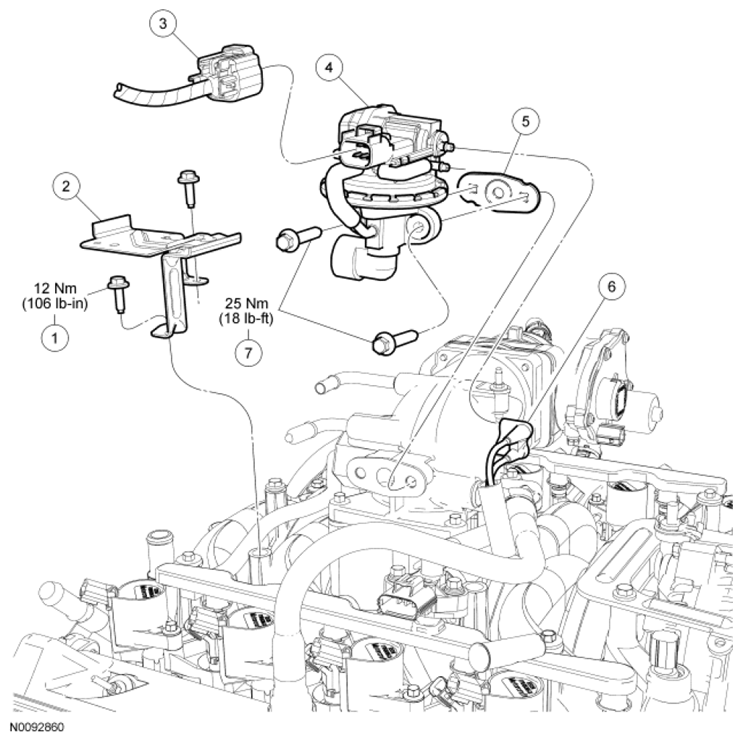

Fig 1: Exploded View Of Exhaust Gas Recirculation (EGR) System Components With Torque Specifications
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | N807309 | Intake manifold shield bolt (2 required) |
| 2 | 9F460 | Intake manifold shield |
| 3 | 14A464 | EGR system module electrical connector |
| 4 | 9D475 | EGR system module |
| 5 | 9D476 | EGR system module gasket |
| 6 | 9E498 | EGR system module vacuum connector |
| 7 | - | EGR system module retaining bolts (2 required) |
