Front Controls Interface Module Connector End View - C2403

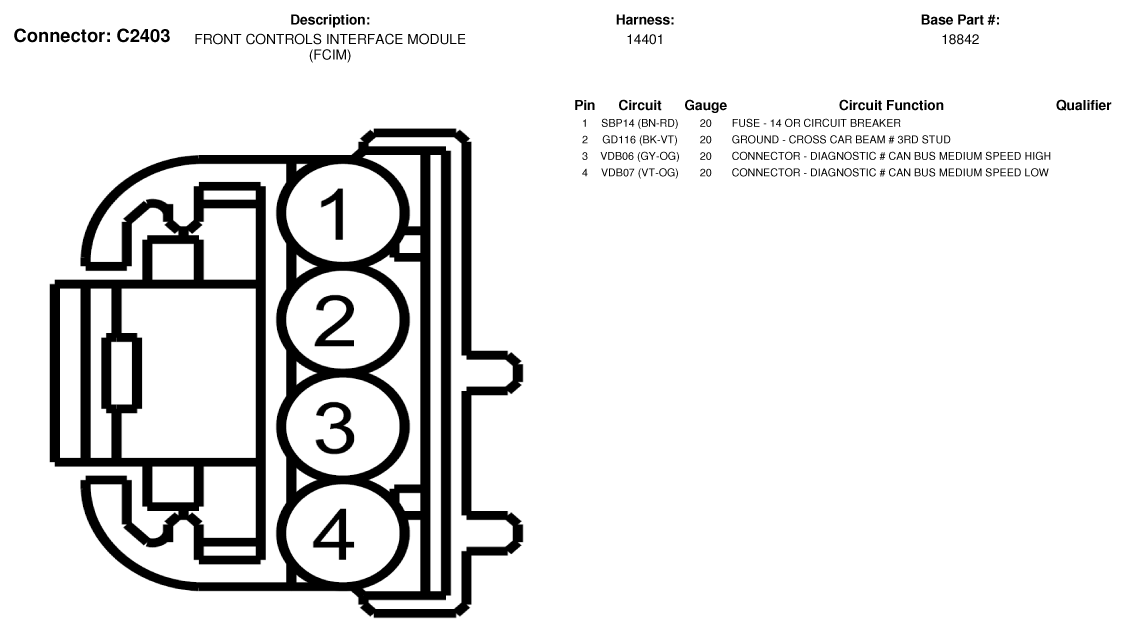

Fig 1: Front Controls Interface Module Connector End View (C2403)
G07335815Courtesy of FORD MOTOR CO.
