Anti-Lock Brake System (ABS) Module: Notes

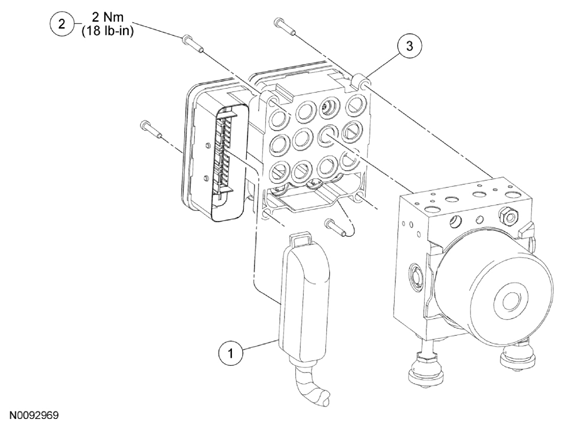

Fig 1: Exploded View Of Anti-Lock Brake System (ABS) Module Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	ABS module electrical connector (part of 14290)
2	2M101	ABS module screw (4 required)
3	2C219	ABS module
