Safety Canopy Module: Installation

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Before installing a Safety Canopy® or side air curtain module, inspect the roofline for any damage. If necessary, the sheet metal must be reworked to its original condition and structural integrity. Install new fasteners if damaged and remove foreign material. Failure to follow these instructions may result in the Safety Canopy® or side air curtain deploying incorrectly, which increases the risk of serious personal injury or death in a crash.
WARNING: Inspect a Safety Canopy® or side air curtain module before installation. If the module is damaged, the cover has separated or the Safety Canopy® or side air curtain material has been exposed, install a new module. Do not attempt to repair the module. Failure to follow these instructions may result in the Safety Canopy® or side air curtain deploying incorrectly, which increases the risk of serious personal injury or death in a crash.
WARNING: Never put any type of fastener or tie strap around any part of a Safety Canopy® module, side air curtain module or interior trim panel. This will prevent the Safety Canopy® or side air curtain module from deploying correctly. Failure to follow this instruction may increase the risk of serious personal injury or death in a crash.
WARNING: Do not obstruct or place objects in the deployment path of the Safety Canopy® or side air curtain module. Failure to follow this instruction may result in the Safety Canopy® or side air curtain module deploying incorrectly and increases the risk of serious personal injury or death in a crash.
  1. Engage the mounting hook into the sheet metal, position the Safety Canopy® in the vehicle and attach the B-pillar pin-type retainer.

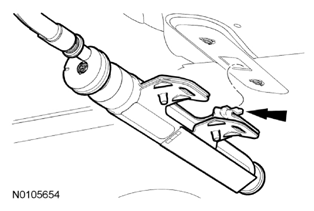

    Fig 1: Locating B-Pillar Pin-Type Retainer
    G07795085Courtesy of FORD MOTOR CO.
  2. Install the Safety Canopy® module B-pillar bolt.
    • Tighten to 8 Nm (71 lb-in).
  3. Install the 2 Safety Canopy® module canister bolts.
    • Tighten to 8 Nm (71 lb-in).
  4. Install the Safety Canopy® module middle and D-pillar bolts.
    • Tighten to 8 Nm (71 lb-in).
  5. Tighten the Safety Canopy® module A-pillar bolt to 8 Nm (71 lb-in).
  6. Install the Safety Canopy® module front tether bolt and attach the pin-type retainers to the A-pillar.
    • Tighten to 8 Nm (71 lb-in).
  7. If equipped, for the LH side, attach the roof opening panel wire harness pin-type retainer to the safety canopy bracket.
  8. Connect the Safety Canopy® module electrical connector.
  9. Install the quarter trim panel(s) and headliner. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION article.
  10. Repower the SRS. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
