Heating Ventilation Air Conditioning (HVAC) Module: Notes
WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

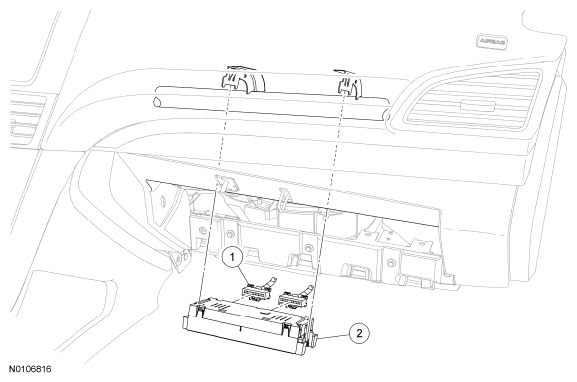

Fig 1: Identifying HVAC Module And HVAC Module Electrical Connector
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
-
HVAC module electrical connector (part of 14401) (2 required)
