Transaxle Case Bushing: Notes

SPECIAL TOOL(S)

	Handle 205-153 (T80T-4000-W)
	Installer, Seal 307-626
	Step Plate 205-D015 (D80L-630-4) or equivalent
	Remover, Transmission Extension Housing Bushing 308-070 (T77L-7697-E)
	Installer, Bushing 307-664

MATERIAL

Item	Specification
Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC	MERCON® LV

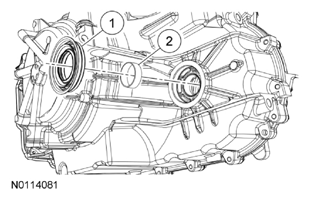

Fig 1: Identifying LH Halfshaft Bushing And Seal

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	1177	LH halfshaft seal
2	7025	LH halfshaft bushing
