Home › Mercury › 2011 › Milan Base, Standard › Repair and Diagnosis (Single Page) › Electrical › Body Electrical › OEM Connector End Views (Except Hybrid) › Connector Views › Audio Digital Signal Processing Module Connector › Audio Digital Signal Processing Module Connector End View - C4235A

Audio Digital Signal Processing Module Connector End View - C4235A

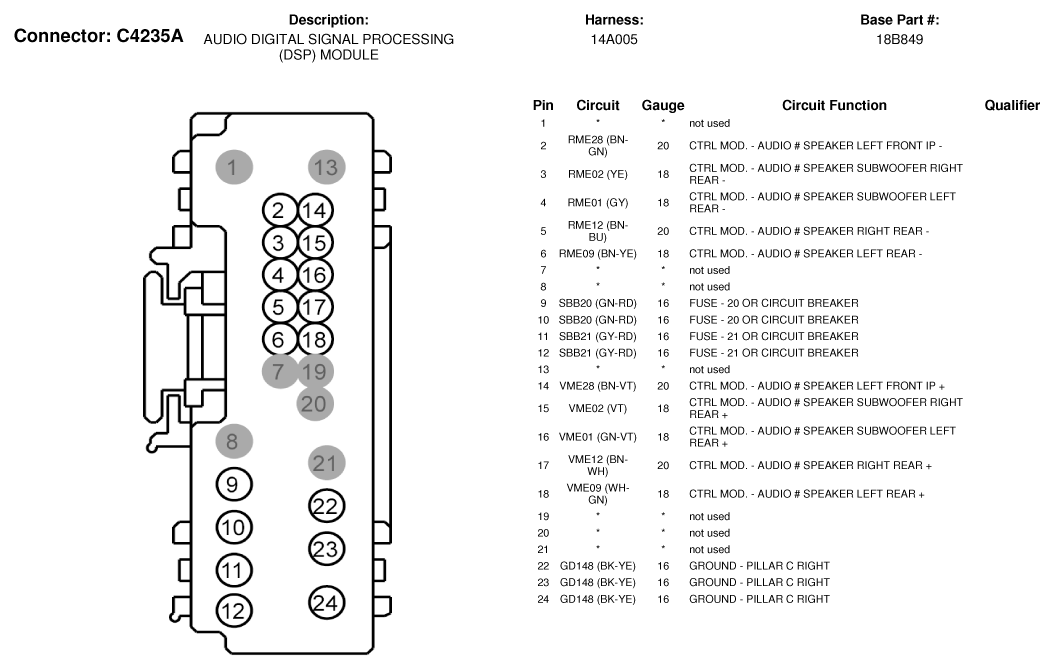

Fig 1: Audio Digital Signal Processing Module Connector End View (C4235A)
G07335908Courtesy of FORD MOTOR CO.
