Audio Digital Signal Processing Module Connector End View - C4235C

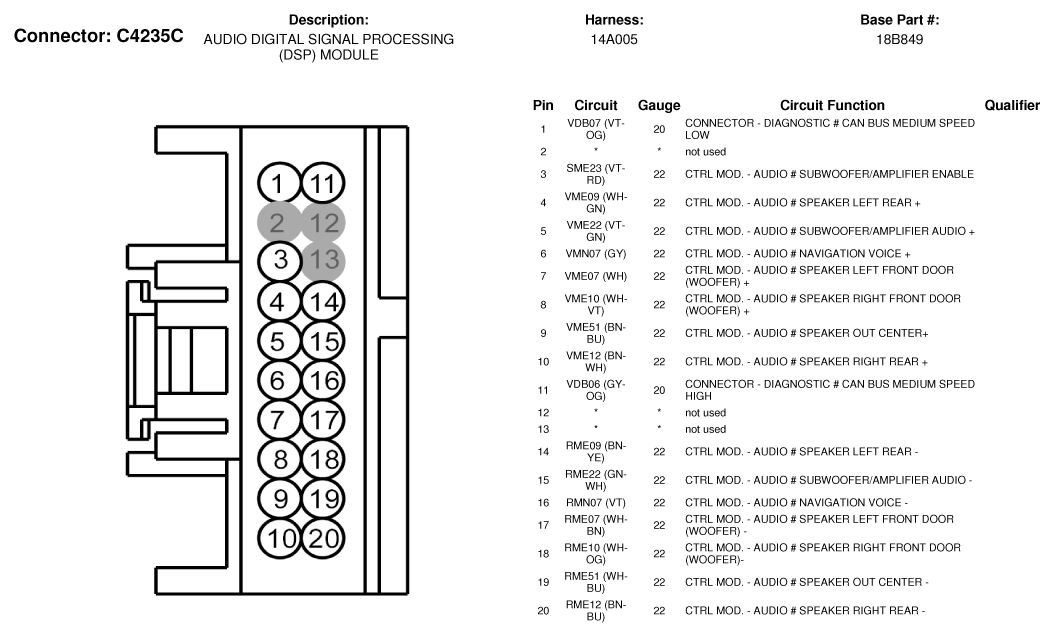

Fig 1: Audio Digital Signal Processing Module Connector End View (C4235C)
G07335910Courtesy of FORD MOTOR CO.
