Audio Digital Signal Processing Module Connector End View - C4240B

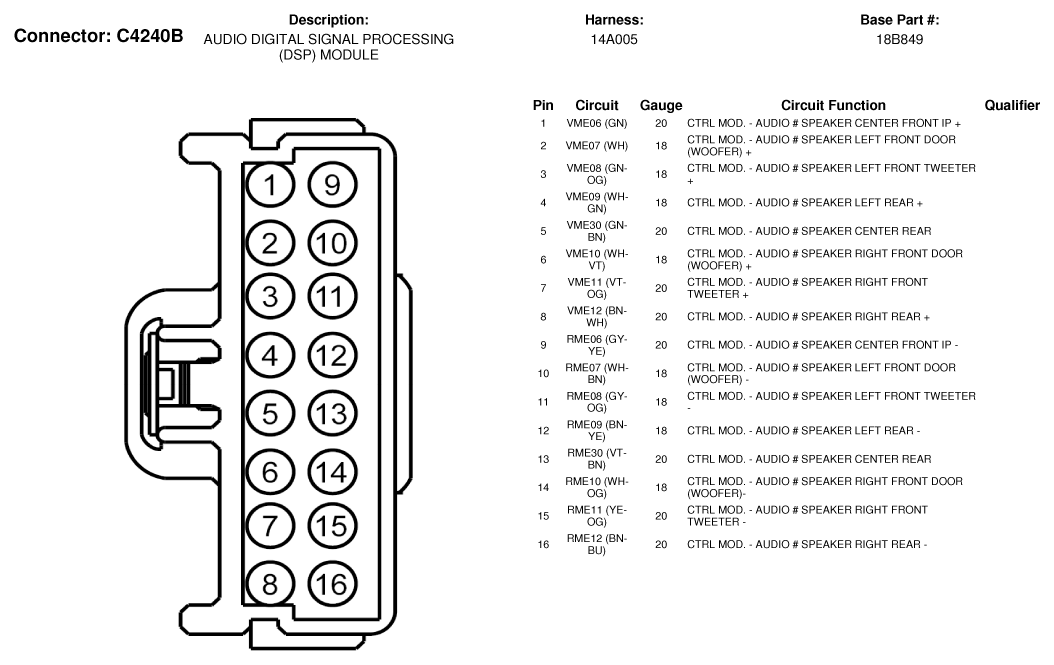

Fig 1: Audio Digital Signal Processing Module Connector End View (C4240B)
G07335912Courtesy of FORD MOTOR CO.
