Headlamp Control Module (HCM): Notes
WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The front bumper cover is shown in illustration removed for clarity.

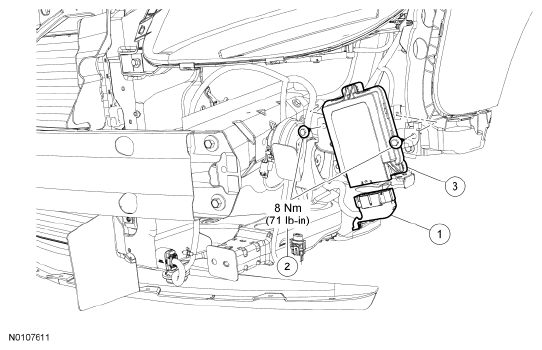

Fig 1: HCM Electrical Connector, Headlamp Control Module Bolts And Headlamp Control Module With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | HCM electrical connector (part of 14290) |
| 2 | N705134 | Headlamp Control Module (HCM) bolts (2 required) |
| 3 | 13K198 | HCM |
