Headlamp Control Module 2 (HCM-2): Notes

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

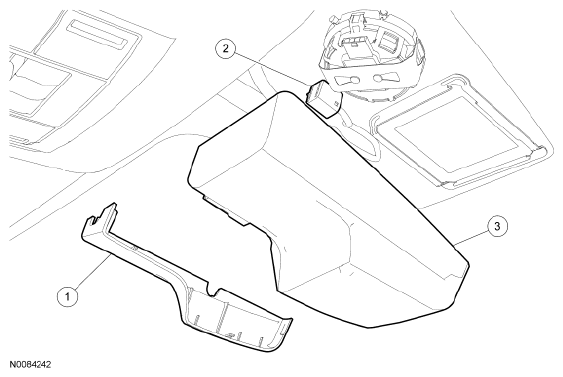

Fig 1: Identifying HCM-2 Electrical Connector, Headlamp Control Module 2 And HCM-2

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	13E002	Headlamp Control Module 2 (HCM-2) cover
2	-	HCM-2 electrical connector (part of 14334)
3	13C105	HCM-2

NOTE: View of the forward side of the HCM-2.

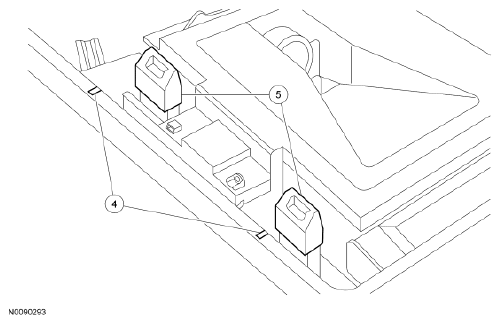

Fig 2: Identifying Headlamp Control Module 2 (HCM-2) Retaining Tabs

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
4	-	Notches locating the retaining tabs
5	-	Headlamp Control Module 2 (HCM-2) retaining tabs
