Accessory Protocol Interface Module (APIM): Notes
WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

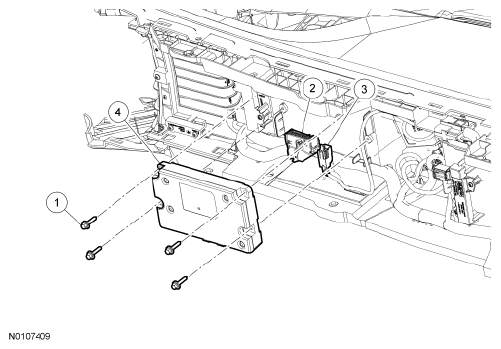

Fig 1: Identifying Accessory Protocol Interface Module (APIM) Screws, APIM Electrical Connector And Universal Serial Bus Cable
| Item | Part Number | Description |
|---|---|---|
| 1 | W703220-S | Accessory Protocol Interface Module (APIM) screws (4 required) |
| 2 | - | APIM electrical connector (part of 14B079) |
| 3 | 14D202 | Universal Serial Bus (USB) cable |
| 4 | 14D212 | APIM |
