Digital Versatile Disc (DVD) Player: Notes

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Never drive a vehicle with any seat components removed from an occupant classification system (OCS) equipped seat. Failure to follow these instructions may result in incorrect operation of the occupant classification system (OCS), which increases the risk of serious personal injury or death in a crash.

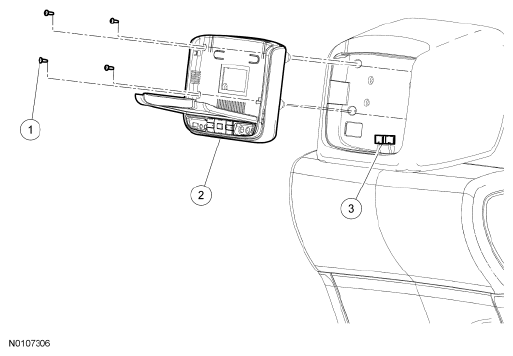

Fig 1: Identifying DVD Player Electrical Connectors, DVD Player And DVD Player Screws
G06283986Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W505943-S DVD player screws (4 required)
2 10E947 DVD player
3 - DVD player electrical connectors (part of 18N802)
