Steering Column Wire Harness

NOTE: 2.5L/3.0L shown in illustration, 3.5L similar.

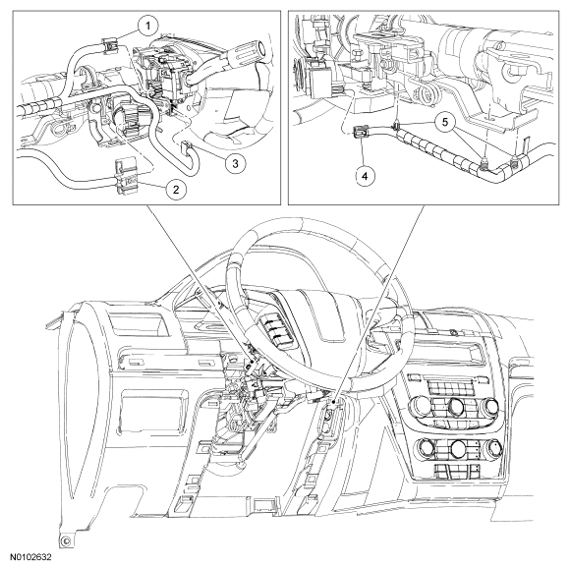

Fig 1: Identifying Steering Column Wire Harness Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	Multifunction switch electrical connector (part of 14401)
2	-	Ignition switch electrical connector (part of 14401)
3	-	Clockspring electrical connector (part of 14401)
4	-	Passive Anti-Theft System (PATS) electrical connector (part of 14401)
5	-	Wiring harness retainers (3 required) (part of 14401)
