Audio Digital Signal Processing Module Connector End View - C4240C

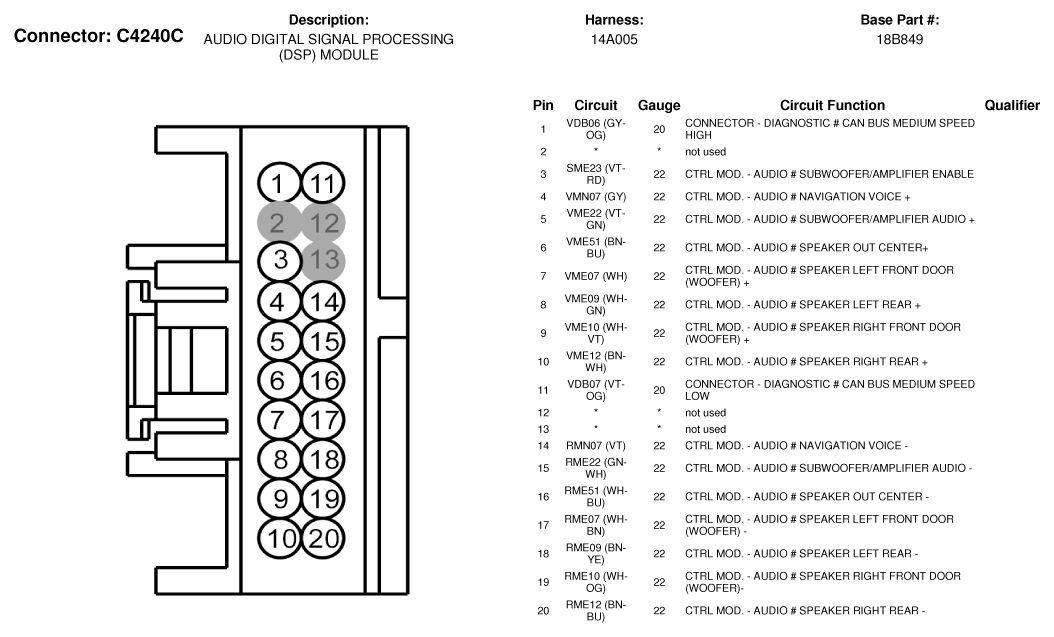

Fig 1: Audio Digital Signal Processing Module Connector End View (C4240C)
G07329704Courtesy of FORD MOTOR CO.
