Transaxle Control Module Connector End View - C1458A

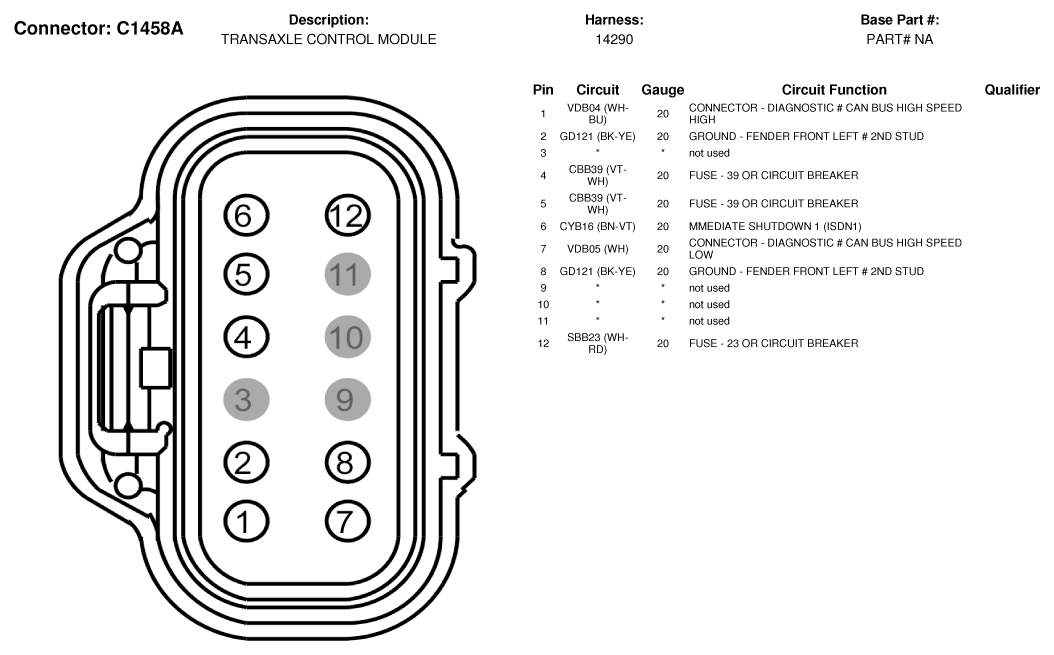

Fig 1: Transaxle Control Module Connector End View (C1458A)
G07329537Courtesy of FORD MOTOR CO.
