Transaxle Control Module Connector End View - C1458B

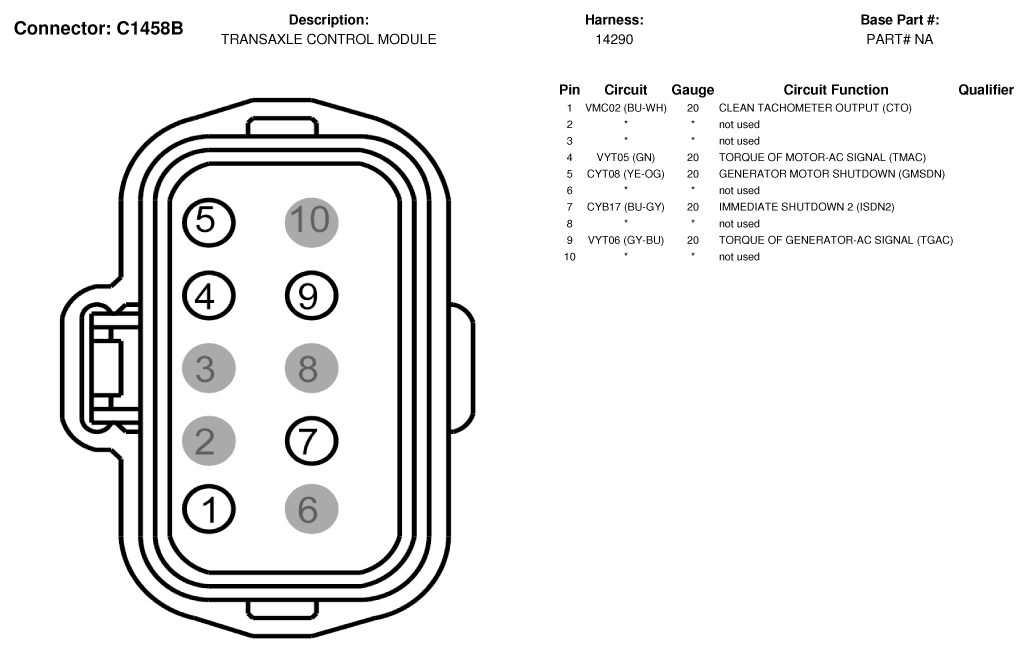

Fig 1: Transaxle Control Module Connector End View (C1458B)
G07329538Courtesy of FORD MOTOR CO.
