Transaxle Control Module Connector End View - C1458C

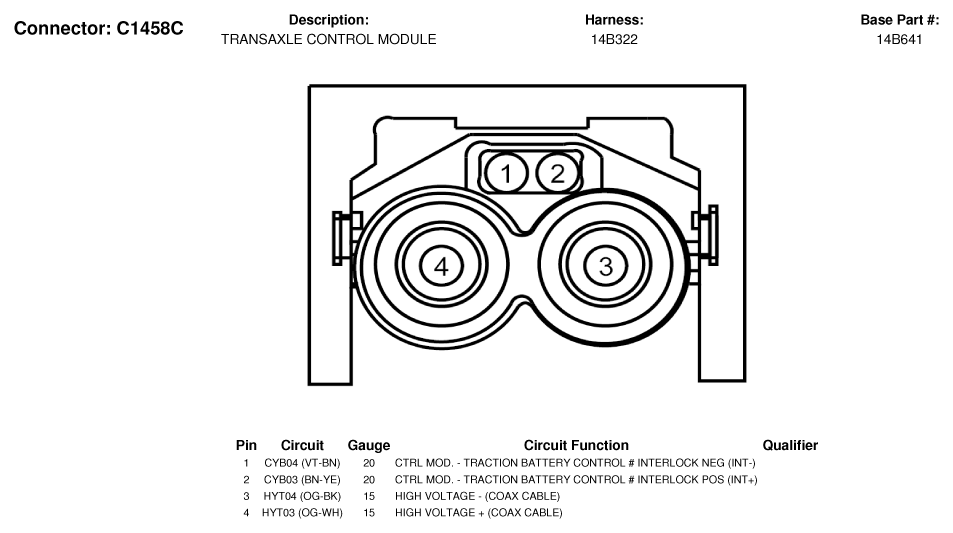

Fig 1: Transaxle Control Module Connector End View (C1458C)
G07329539Courtesy of FORD MOTOR CO.
