Powertrain Control Module (PCM): Notes

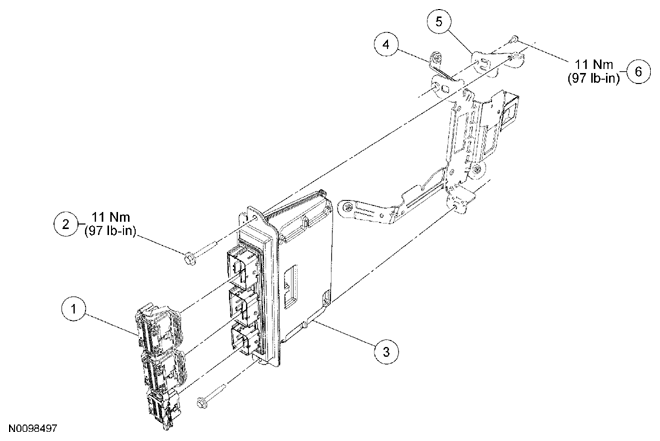

Fig 1: Powertrain Control Module (PCM) Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	14A464	PCM electrical connector (3 required)
2	W5505428	PCM bolt (2 required)
3	12A650	PCM
4	12A692	PCM bracket
5	-	Upper PCM bracket (part of 12A692)
6	-	Upper PCM bracket bolt (part of 12A692)
