XR4Ti Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Fuel Injection System
›
Wiring Diagram
Fuel Injection System: Wiring Diagram

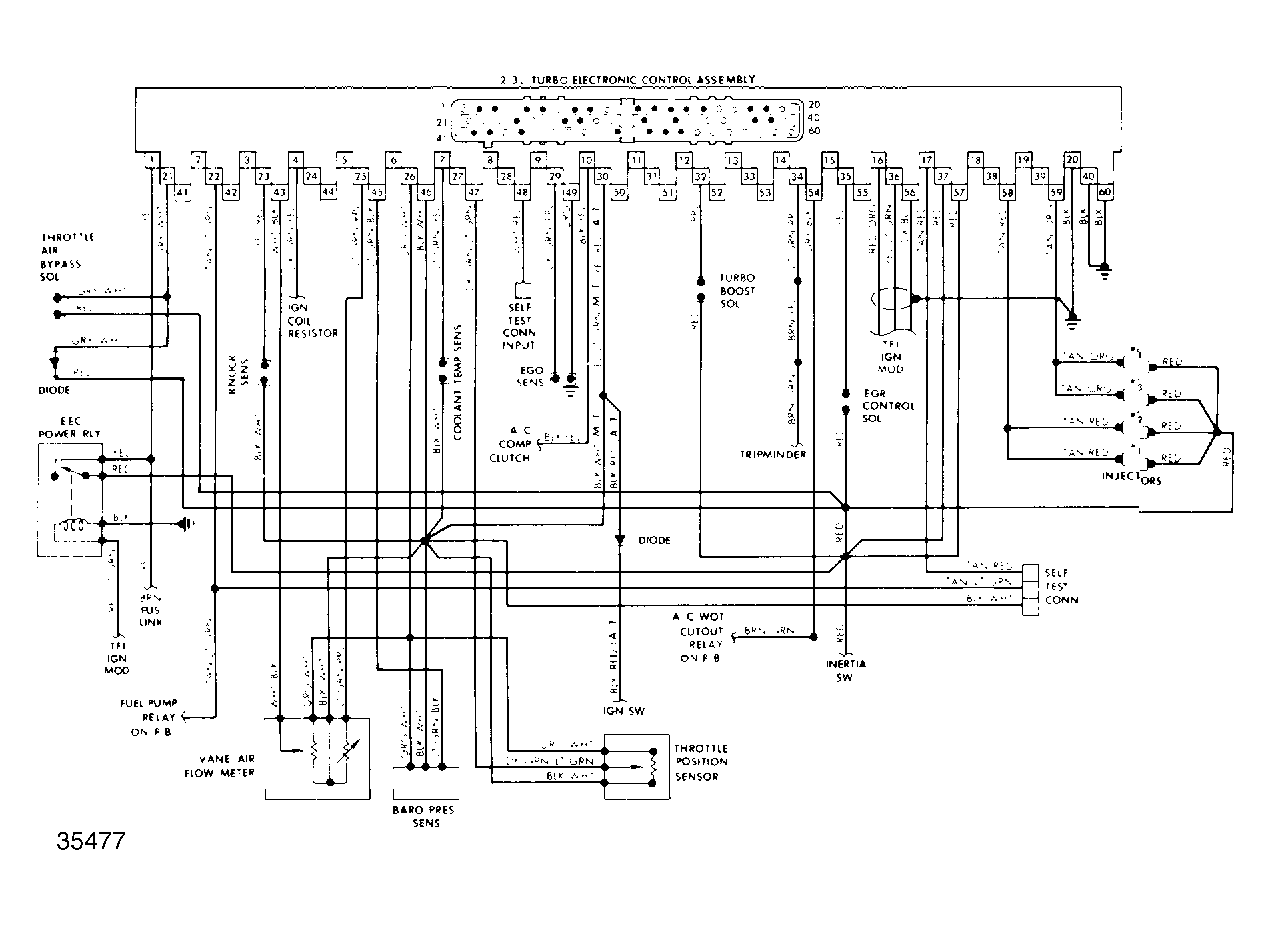

Fig 1: Merkur XR4Ti Fuel Injection Wiring Diagram
